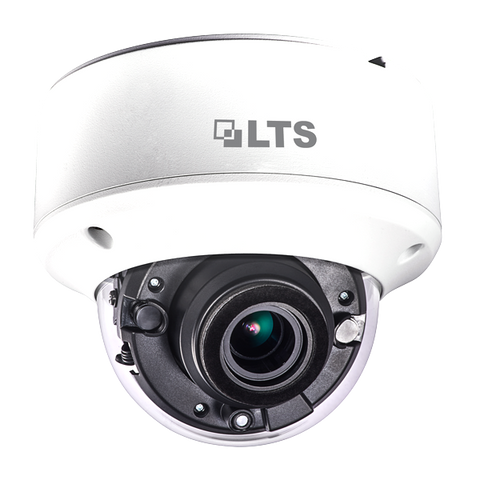

CMHD35T3DW-Z Platinum Motorized Dome HD-TVI Camera 3MP
- 3MP High Definition
- 2.8-12mm Motorized Varifocal Lens
- True WDR 120dB
- 2 Matrix IR 2.0 up to 131ft (40m)
- DC 12V, AC 24V
- OSD Menu via UTC technology compatible with HD-TVI DVR
- IP66 weatherproof
- 3-Axis
*Must be Used with HD-TVI 3.0 DVRs
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| CAMERA | |
| Image Sensor | 1/3" CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 2052(H)*1536(V) |
| Min. Illumination | 0.01Lux, 0 Lux with IR |
| Lens | 2.8-12mm Motorized Varifocal Lens |
| Shutter Speed | 1/3(1/25) to 1/50,000 s |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 1920x1536@18fps |
| HD Video Output | 1 HD-TVI Output |
| S/N Ratio | More than 62dB |
| MENU | |
| AGC | Support |
| D/N Mode | Color/ BW/ SMART |
| White Balance | ATW/ MWB |
| BLC | Support |
| Function | True WDR, DNR, Mirror, SMART IR |
| GENERAL | |
| Working Temperature /Humidity |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing) |
| Power Supply | DC 12V, AC 24V |
| Power Consumption | Max. 6.5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 131ft (40m) |
| Impact Protection | IK10 |
| Dimensions | 5.8" x 4.9" (145.2 x 124.1mm) |
| Weight | 3.5 lbs (1600g) |
