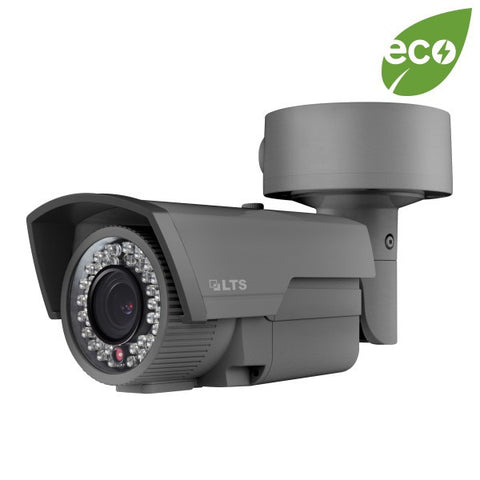

CMHR9323DB / eco - Platinum HD-TVI Varifocal Bullet Camera 2.1MP, AC 24V/ DC 12V - Black
- 2.1MP High Definition
- Full HD 1080P
- 1920X1080P@30fps
- 2.8-12mm Varifocal Lens
- 42 pcs IR LEDs up to 165ft
- Junction Box Included
- Outdoor/Indoor
- DC 12V/ AC24V
- IP66
- UTC
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Camera | |
| Image Sensor | 1/2.7" Sensor |
| Signal System | NTSC/PAL(Euro Version) |
| Effective Pixels | 1930(H)*1088(V) |
| Min. Illumination |
0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
|
| Shutter Speed | NTSC:1/30 s(PAL:1/25 s) to 1/50,000s |
| Lens | 2.8-12mm Angle of View: 102°-35° |
| Day & Night |
ICR
|
| Synchronization | Internal synchronization |
| Video Frame Rate | NTSC:1080p@30fps/PAL:1080p@25fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | More than 52dB |
| Menu | |
| Camera ID | On/Off (0-255) |
| AGC | Support |
| D/N Mode | Color/BW/Auto/EXT |
| White Balance | Auto/User/Push/8000K/6000K/4200K/3200K/HOLD |
| Privacy Mask | On/Off, Maxiumum 2 zones |
| Motion Detection | On/Off |
| BLC | Support |
| Anti-Flicker | On/Off |
| Language | English, Chinese |
| Function | Mirror |
| General | |
| Working Temperature /Humidity |
-40 °F - 140 °F (-40 °C - 60 °C)
Humidity 90% or less (non-condensing)
|
| Power Supply | AC 24V. DC 12V |
| Power Consumption | Max. 5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 165ft |
| Dimensions |
4.1” x 3.4” x 11.9” (105.0× 86.9 × 302.3 mm)
|
| Weight | 3.3lb(1500g) |
