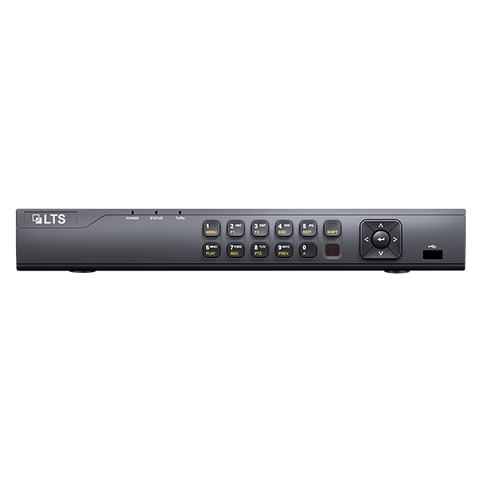

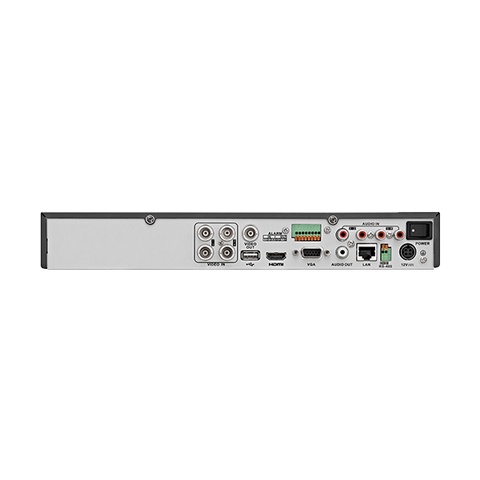

Platinum 4+4 Channel Hybrid NVR - Compact Case - LTN8704T-HT
- 4 + 4 Channel Hybrid Network Video Recorder
- Support Live View, Storage, Playback up to 4K, 8MP IP Camera
- Support 4 Channel HD-TVI 3.0 / AHD / Analog
- Support 4 Channel IP Camera @40MB Bandwidth
- 1080P HDMI/VGA Video Output, CVBS Spot Out
- 1 SATA HDD up to 6TB Each
- 4 Audio In, 1 Audio Out
- H.264 / H.264 Zip+
- 1 POS
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Video/Audio Input | |
| Video/Audio Input | H.264 Zip+ / H.264 |
| Video Input | 4-CH
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition |
| Supported HDTVI input | 3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz |
| Supported AHD input | 720p/30Hz, 720p/25Hz |
| CVBS input | Support |
| IP input | 4-ch(up to 8-ch) |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video/Audio Output | |
| HDMI/ VGA output | 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| Encoding resolution | 3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480 |
| Frame rate | Main stream: 30fps(N)/25fps(P)
Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time) |
| Video bit rate | 32 Kbps-10 M bps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual- stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4ch |
| Network | |
| Remote connections | 96Mbps |
| Network protocols | TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 1 SATA |
| Capacity | Up to 6TB capacity for each disk |
| External Interface | |
| Network Interface | 1, RJ45 10M / 100Mself-adapt ive Ethernet interface |
| Serial Interface | 1; RS-485 serial interface, half-duplex |
| USB Port | 2 × USB2.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤ 15W |
| Working Temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working Humidity | 10% - 90% |
| Chassis | Compact Casing |
| Dimension | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤2 Kg (4.4 lb) |
