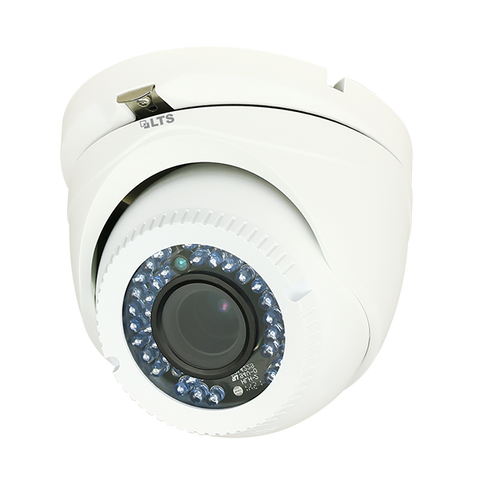

CMHT1422W-28 / Platinum HD-TVI Turret Camera 2.1MP - True WDR 120dB
- 2.1MP High Definition
- Full HD 1080P
- 1920X1080P@30fps
- 2.8mm Fixed Lens
- 24 IR LEDs up to 65ft
- Outdoor/Indoor
- DC 12V
- IP66
- True WDR 120dB
- UTC
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Camera | |
| Image Sensor | 1/3"Sensor |
| Signal System | NTSC / PAL(Euro Version) |
| Effective Pixels | 1920(H)×1080(V) |
| Min. Illumination | 0.01 Lux @ (AGC ON),0 Lux with IR |
| Shutter Speed | NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000 |
|
Lens
|
2.8mm |
| Day & Night | ICR |
| Synchronization | Internal synchronization |
| Video Frame Rate | NTSC:1080p@30fps/PAL:1080p@25fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | More than 52dB |
| Menu | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID | On / off (15 characters, position programmable) |
| AGC | Support |
| D / N Mode | Color / BW / EXT |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual |
| D/N Mode | Color/BW/SMART IR |
| Privacy Mask | On/Off,maximum 8 zones |
| Motion Detection | On / Off, maximum 4 zones |
| BLC | Support |
| Anti-flicker | On / off |
| Language |
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Functions |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| General | |
| Working Temperature /Humidity |
-4°F - 140°F(-20 °C - 60 °C ) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12V DC |
| Power Consumption | Max.4W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 65ft(20m) |
| Dimension | 3.5'' × 2.3'' ( 89.6 x 59.1mm) |
| Weight | 0.9lb(400g) |
