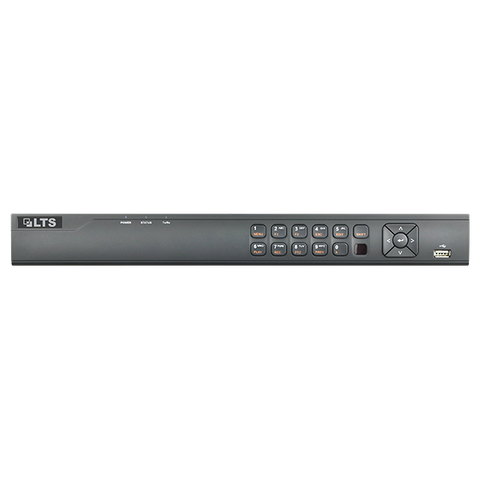

LTD8508K-ST Platinum Professional Level 8 Channel HD-TVI 4.0 DVR
*Inquire if you need HDD
- H.265+ 8 Channel Video Recorder
- 4/1 RCA I/O
- 8 channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
- 8 channels support up to 5M HD-TVI input
- Up to 2-ch 6 MP IP cameras input
- Support Live View, Storage, Playback up to 8 HD-TVI / Analog Cameras + 2 IP Cameras
- Up to 4K HDMI Video Output
- CVBS Output
- 2 SATA up to 16TB HDD
- 2 USB 2.0
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Memory - Price/TB
Here are the prices:
|
1TB $100 |
|
2TB $125 |
|
3TB $170 |
|
4TB $232 |
Please email or Direct Message to add memory
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specifications
| VIDEO/AUDIO INPUT | |
| Video Compression | H.265+/H.265/H.264 Zip+/H.264 |
| Video Input | 8ch
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
| IP Input | 2-ch, Up to 6 MP resolution |
| HDTVI input | 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| Audio Compression | G.711u |
| Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) |
| VIDEO/AUDIO OUTUPUT | |
| HDMI/VGA Output | VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Frame Rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-10 M bps |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 8ch |
| NETWORK | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| HARD DISK | |
| SATA | 2 SATA |
| Capacity | Up to 8TB capacity for each disk |
| EXTERNAL INTERFACE | |
| Network interface | 1:10M / 100Mself-adapt ive Ethernet interface |
| Serial interface | RS-4 85 |
| USB Port | 2 × USB 2.0 |
| Alarm In/Out | 8/4 |
| GENERAL | |
| Power supply | DC12V |
| Consumption | ≤ 20W |
| Working temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U |
| Dimensions (WxDxH) | 380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch) |
| Weight | ≤2 Kg (4.4 lb) |
