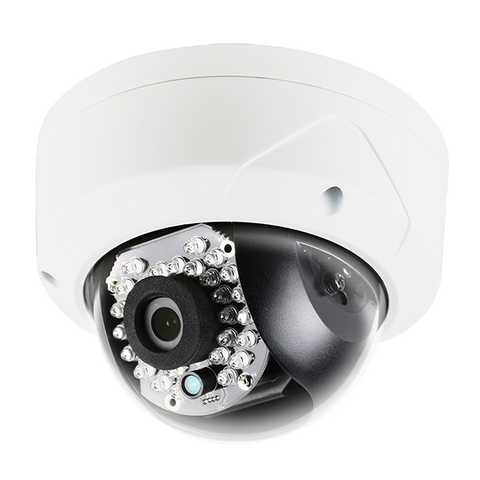

CMIP7422W-M Platinum Fixed Lens Dome IP Camera 2.1MP

CMIP7422W-M Platinum Fixed Lens Dome IP Camera 2.1MP


Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
  • 2.1MP High Definition
  • 1/2.8” CMOS
  • 1920X1080P@30fps
  • 4mm Fixed Lens
  • 30 IR LEDs up to 100ft
  • 3D DNR, WDR, BLC, VCA, 3-Axis
  • Micro SD/ SDHC/ SDXC Card Slot
  • Vandalproof, IP66
  • Junction Box Sold Seperately
  • DC 12V, PoE
    Specs
    Camera
    Image Sensor 1/2.8" Progressive Scan CMOS
    Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
    Shutter Speed 1/3 s to 1/10,000 s
    Lens 4mm, Angle of View: 90°
    Lens Mount M12
    Day & Night IR cut filter with auto switch
    DNR 3D DNR
    Wide Dynamic Range 120dB
    P&T Rotation Pan: -9 0° ~ 90°, Tilt: 0 ° ~ 7 5°
    Compression Standard
    Video Compression H.264 / MJPEG/H.264 Zip+
    H.264 Type Main Profile
    Video Bit Rate 32 Kbps ~ 8 Mbps
    Dual streams Support
    Max. Resolution 1920 × 1080
    Frame Rate 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
    50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
    Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
    BLC Support, zone configurable
    ROI Codec Support
    Network
    Network Storage NAS (Support NFS,SMB/CIFS), ANR
    Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
    Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
    Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
    Interface
    Communication Interface 1 RJ45 10M/100M Ethernet port
    On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
    Reset Yes
    General
    Working Temperature
    /Humidity
    -22 ° F ~ 140 °F (-30 °C ~ 60 °C)
    Humidity 95% or less (non-condensing)
    Power Supply DC12V ± 10%, PoE (802.3af)
    Power Consumption Max. 5W
    IR Range Approx. 100ft (30 meters)
    Weather Proof Ratings IP66
    Impact Protection IK08
    Dimensions Φ4.4” × 3.2” (Φ111×82.0mm)
    Weight 1.1 lbs (500g)
