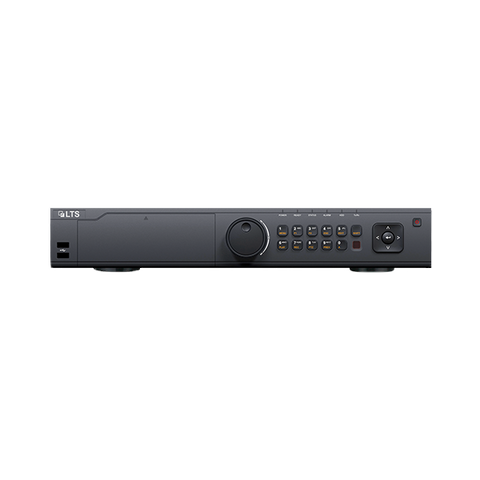

LTN8932 Platinum Enterprise Level 32 Channel 4K NVR 1.5U
- Connect up to 32 IP Cameras
- Support Live View, Storage, Playback up to 12MP (3072x2048)
- HDMI Video Output up to 4K
- 4 SATA up to 6TB
- Supports HDD Quota and Group Modes
- 1CH CVBS
*Inquire if you need HDD
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Video/Audio Input | |
| IP Video Input | 32-CH, Up to 12MP Resolution |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 256Mbps |
| Outgoing Bandwidth | 256Mbps |
| Remote Connection | 128 |
| Video/Audio Output | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-CH, RCA (Linear, 1kΩ) |
| Decoding | |
| Live View/ Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-CH |
| Capability | 4-ch @ 4K, or 16-ch @1080p |
| Hard Disk | |
| SATA | 4 SATA interfaces for 4 HDDs |
| Capacity | Up to 6TB for Each Disk |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interfaces |
| Serial Interface | 1 RS-485 (Half-Duplex), 1 RS-232 |
| USB Interface | Front Panel: 2×USB 2.0; Rear Panel: 1×USB 3.0 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100~240V AC |
| Consumption | ≤20W |
| Working Temperature | +14ºF ~ +131 ºF(-10ºC ~ +55ºC) |
| Working Humidity | 10% - 90% |
| Casing | 19-Inch Rack-Mounted 1.5U Casing |
| Dimension | 17.5"× 15.3" × 2.8"(445 × 390 ×70 mm) |
| Weight | ≤11lb (5Kg) |
