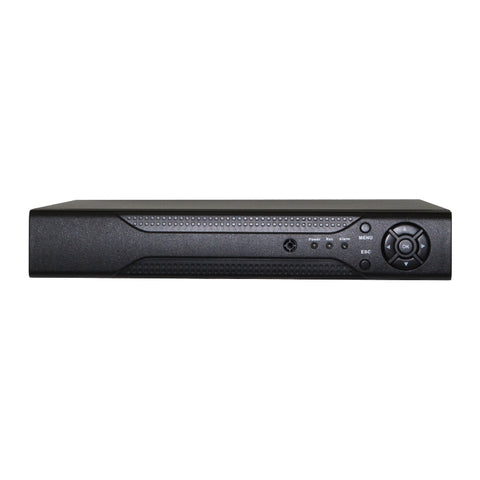

H.264 1080N 5-IN-1 RECORDING STANDALONE DVR - 8 CHANNELS - Hybrid DVR - DVRJ0828S
- H.264 baseline profile@L3.1
- AHD, HD-TVI, HD-CVI / Analog x8 / IPC
- HDMI x1, VGA x1
- Preview: 1080N@25fps, 720p@25fps
Record: 1080N@12fps, 720p@25fps - P2P Cloud function, easy set up and use
Support Iphone, Android phone, tablet, IE, Chrome and Firefox - H.264 baseline profile@L3.1
- With 1TB HDD
Specs
Model Number | DVRJ0828S |
Video Compression | H.264 baseline profile@L3.1 |
Video Input | AHD, HD-TVI, HD-CVI / Analog x8 / IPC |

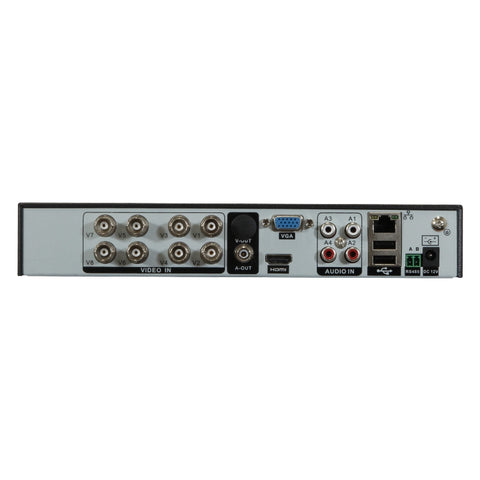

Video Output | HDMI x1, VGA x1 |
Resolution Per Channel | Preview: 1080N@25fps, 720p@25fps Record: 1080N@12fps, 720p@25fps |
Network Function | P2P Cloud function, easy set up and use Support Iphone, Android phone, tablet, IE, Chrome and Firefox |
Audio Input | RCA x4 |
Audio Output | RCA x1 (ADPCM decode) |
Network Interface | RJ45 (10M/100M self-adapting) |
HDD Interface | SATA x1, up to 8TB |
Peripheral Port | USB 2.0 x2, RS485 x1 |
Recording Mode | Manual, Schedule, Motion |
PTZ Control | Yes |
Remote Control | Yes |
Power Supply | DC 12V, 2000mA |
Dimension | 260(W) x240(L) x40(H)mm |
Video Compression | H.264 baseline profile@L3.1 |
