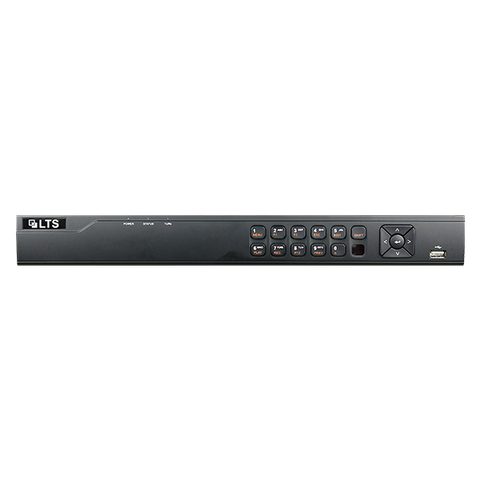

LTN8716K-P16 Platinum Professional Plus Level 16 Channel 4K NVR 1U
- 16 Channel Network Video Recorder
- Support Live View, Storage, Playback up to 4K(8MP) IP Camera
- 160MB Bandwidth
- 16 Built-in PoE
- 4K (3840x2160) HDMI Video Output
- 2 SATA up to 6TB each HDD
- H.264/H.264 Zip+
*Inquire if you need HDD
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Video/Audio Input | |
| IP Video Input | 16-CH |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Connection | 128 |
| Video/Audio Output | |
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output | 4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-CH, RCA (Linear, 1kΩ) |
| Decoding | |
| Decoding Format | H.265/H.264/H.264+/MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16 -ch |
| Capability | 2-ch @ 4K, or 8-ch @1080p |
| Hard Disk | |
| SATA | 2 SATA Interfaces for 2 HDDs |
| Capacity | Up to 6TB for Each Disk |
| External Interface | |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| USB Interface | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In/Out | 4/1 |
| PoE | |
| Interface | 16RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Max. Power | ≤200W |
| Supported Standard | IEEE 802.3 af/at |
| General | |
| Power Supply | 100~240V AC |
| Consumption | ≤ 15W |
| Working Temperature | 14°F - 131°F(-10 °C ~ +55 °C) |
| Working Humidity | 10% - 90% |
| Casing | 15-inch rack-mounted 1U chassis |
| Dimension | 380 × 315× 52 mm (15" × 12.4" × 2.0") |
| Weight | ≤ 1 kg (2.2 lb) |
